PROFIrund Serie A1.1

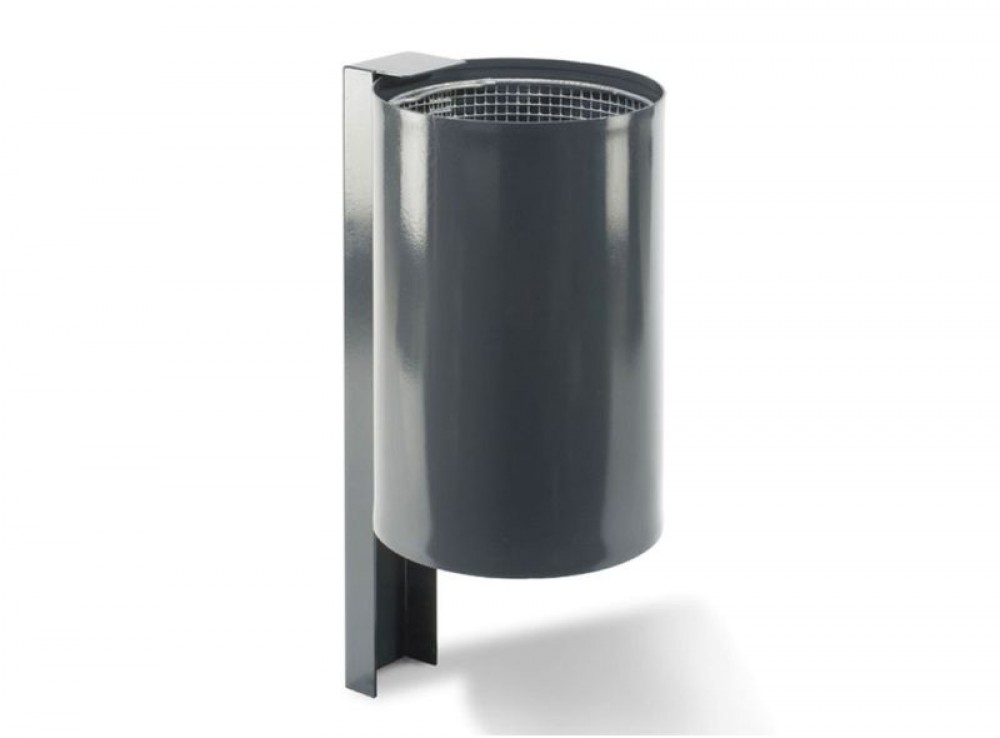

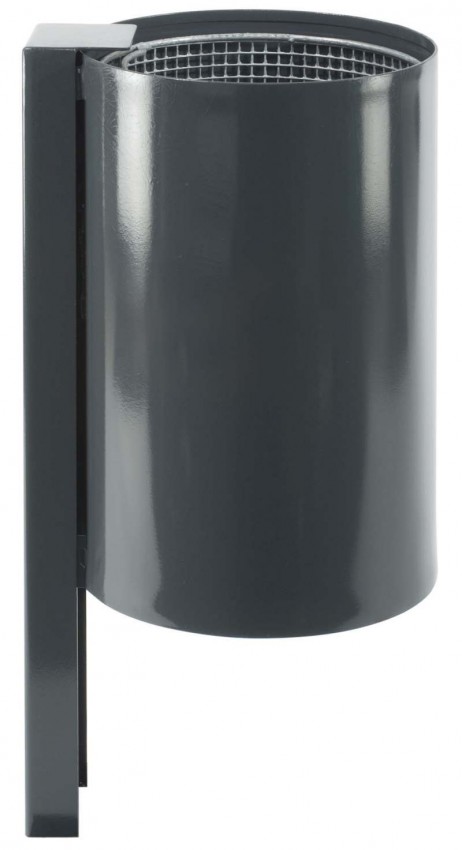

Round litter bin without roof on U-profile support.

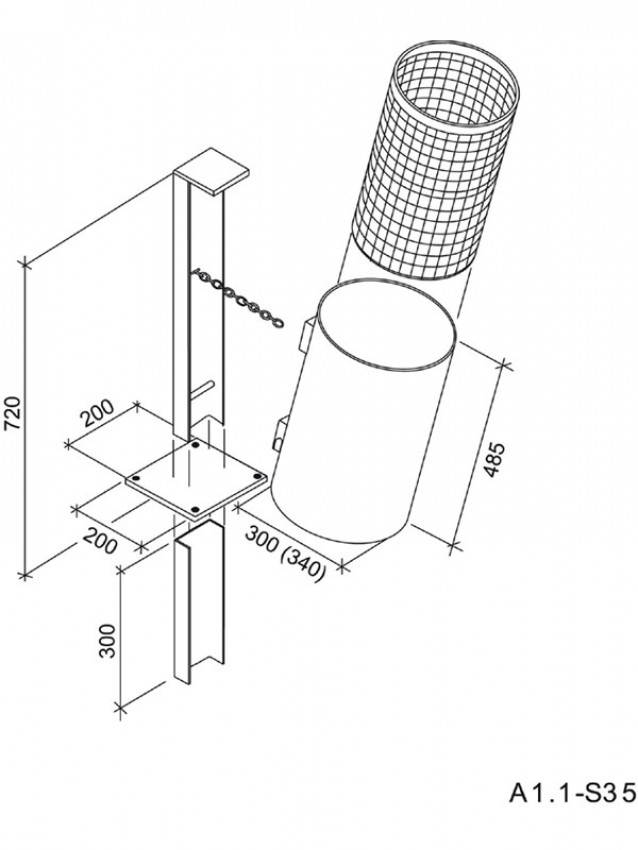

Litter bin for setting in concrete or wall mounting, round, capacity 35 (45, 60) l, diameter 300 mm (from 45 l: 340 mm), bin height 485 mm (60 l: 585 mm), height GOK 720 mm (60 l: 820 mm), U-profile support 110 x 45 mm, tilting mechanism with snap lock for quick disposal; installation height min. 220 (240) mm to bottom edge of bin.
Technical description:
Sheet steel, hot-dip galvanised. Bin edges flanged. Secured with 7 mm triangular lock. Secured against unauthorised removal of bins.
Versions:
A1.1-S35 / A1.1-S45 / A1.1-S60: Stand for setting in concrete, base plate for dowelling (optional). Capacity: 35, 45, 60 litres.
A1.1-W35 / A1.1-W45 / A1.1-W60: Wall mounting. Capacity: 35, 45, 60 litres.
A1.1-45LB: Version in perforated sheet metal, galvanised, capacity 45 l. (on sale)
DKR, BER: Wire basket or sheet metal insert (optional), galvanised.
Colour coating in RAL/DB colours as required (optional).
Function:

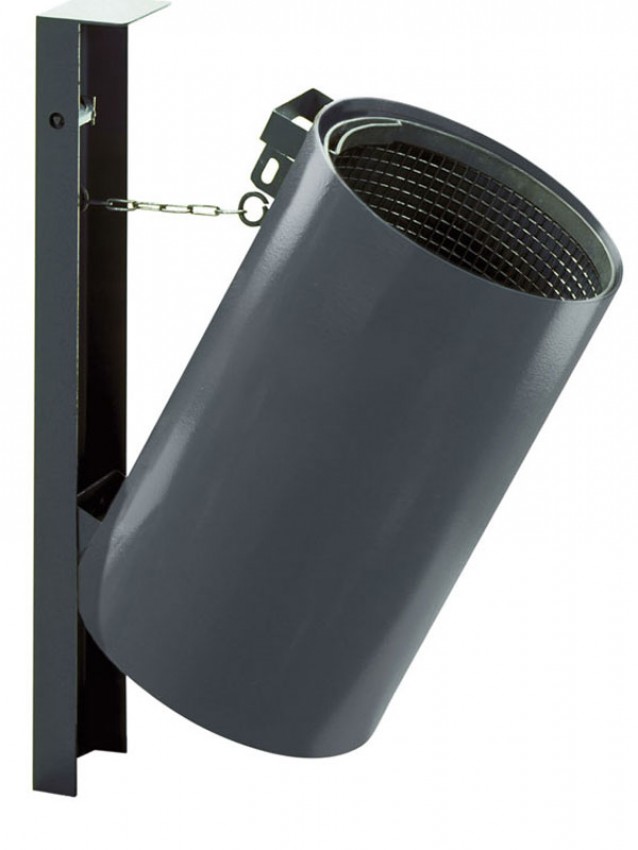

Disposal in seconds: Unlock triangular lock - container tilts forwards. Remove container or insert (see option)
remove and empty. Push the container into the lock - done!
Litter bin for setting in concrete or wall mounting, round, capacity 35 (45, 60) l, diameter 300 mm (from 45 l: 340 mm), bin height 485 mm (60 l: 585 mm), height GOK 720 mm (60 l: 820 mm), U-profile support 110 x 45 mm, tilting mechanism with snap lock for quick disposal; installation height min. 220 (240) mm to bottom edge of bin.
Technical description:
Sheet steel, hot-dip galvanised. Bin edges flanged. Secured with 7 mm triangular lock. Secured against unauthorised removal of bins.
Versions:
A1.1-S35 / A1.1-S45 / A1.1-S60: Stand for setting in concrete, base plate for dowelling (optional). Capacity: 35, 45, 60 litres.
A1.1-W35 / A1.1-W45 / A1.1-W60: Wall mounting. Capacity: 35, 45, 60 litres.
A1.1-45LB: Version in perforated sheet metal, galvanised, capacity 45 l. (on sale)
DKR, BER: Wire basket or sheet metal insert (optional), galvanised.
Colour coating in RAL/DB colours as required (optional).
Function:
Disposal in seconds: Unlock triangular lock - container tilts forwards. Remove container or insert (see option)
remove and empty. Push the container into the lock - done!
